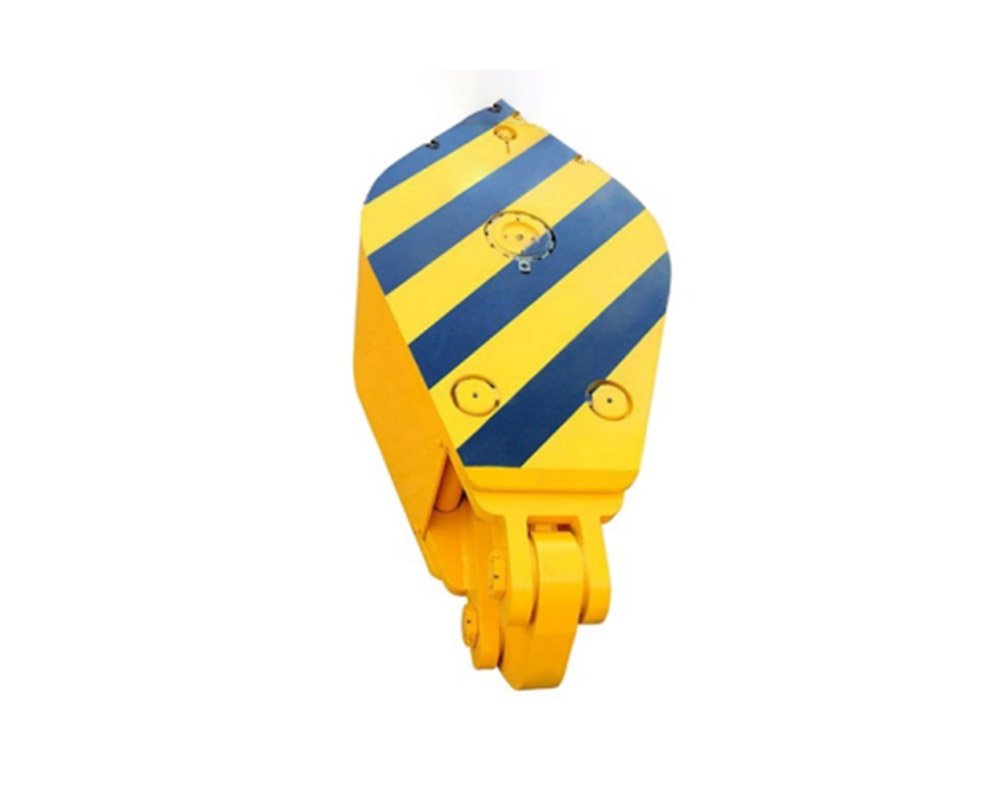

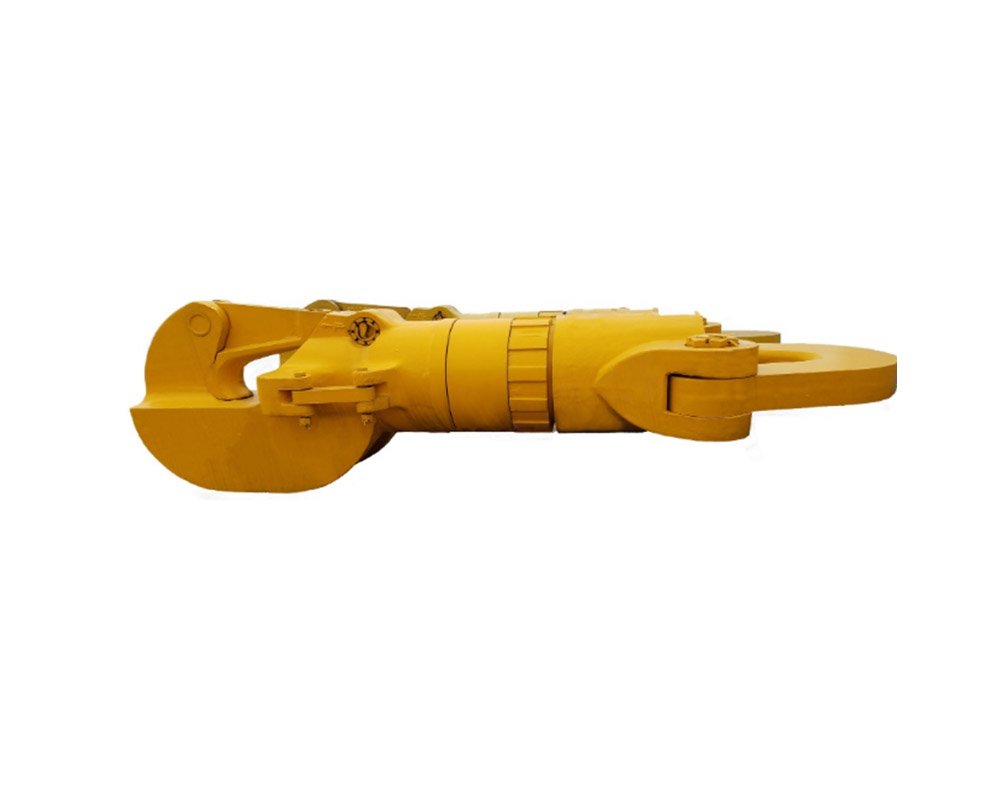

The traveling block and hook block is an important lifting equipment for lifting drill pipes, oil pipes, sucker rods and various drilling tools in drilling and workover operations.
We provide API standard crown block, travel block, hook, and hook block with different load and diameter.
| Hook Model | DG90 | DG135 | DG170 | DG225 | DG315 | DG450 | DG585 | |
| Max. Hook Load | kN | 900 | 1350 | 1700 | 2250 | 3150 | 4500 | 5850 |
| Ton | 100 | 150 | 200 | 250 | 350 | 500 | 650 | |
| Main hook opening size | Mm | 155 | 165 | 180 | 190 | 220 | 238 | |
| in | 2006/1/16 | 2006/1/2 | 7 | 2007/1/2 | 2008/5/8 | 2009/3/8 | ||
| Assistant hook dia. | Mm | 80 | 90 | 100 | 120 | |||
| in | 2003/1/8 | 2003/1/2 | 4 | 2004/3/4 | ||||
| Spring stroke | mm | 180 | 200 | |||||
| in | 7 | 8 | ||||||
| Travel block Model | YC90 | YC135 | YC170 | YC225 | YC315 | YC450 | YC585 | |
| Max. Hook Load | kN | 900 | 1350 | 1700 | 2250 | 3150 | 4500 | 5850 |
| Ton | 100 | 150 | 200 | 250 | 350 | 500 | 650 | |
| Sheave O.D. | Mm | 762 | 915 | 1120 | 1270 | 1524 | ||
| in | 30 | 36 | 44 | 50 | 60 | |||
| Sheave Qty | 4 | 5 | 6 | 7 | ||||
| Wire Rope Dia. | mm | 26 | 29 | 32 | 35 | 38 | 42 | |
| in | 1 | 1 | 2001/1/8 | 2001/1/4 | 2001/3/8 | 2001/1/2 | 2001/5/8 | |
